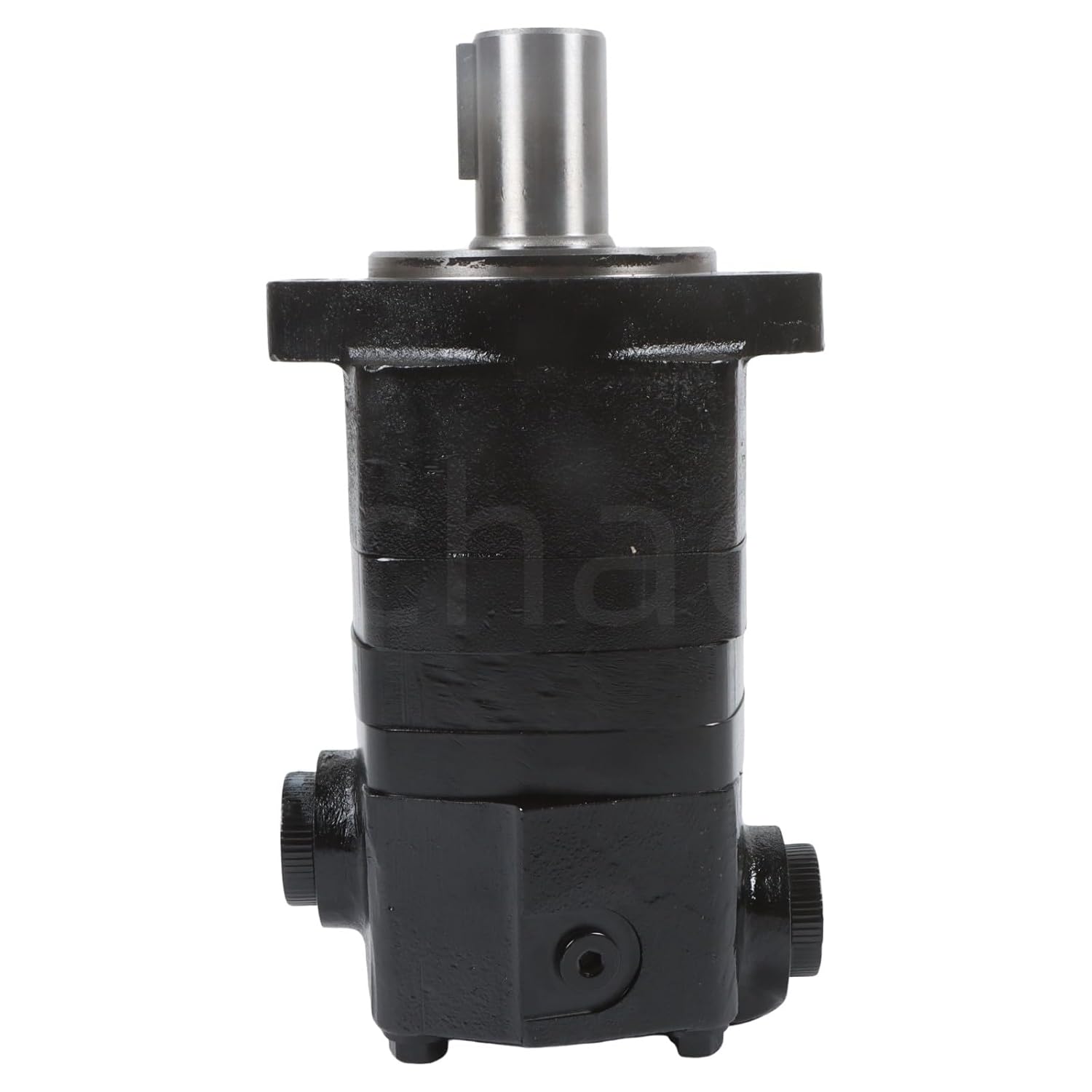

1pcs 104-1041-006 Hydraulic Motor for Eaton Char-Lynn 2000 Series 12.20 Cubic feet inches per Revolution Displacement.
4.6 (116 items)
Limited Time Sale$105.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218127547 | Release Date | 2026/05/03 | List Price | $70.00 | Model Number | 218127547 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Series: 2000 - StandardDisplacement: 11.89 cu in/lShaft Type: StraightMaximum Operating Temperature: 180° FahrenheitOutput Shaft Size: 1 in Straight - Woodruff KeyOverall Height: 4.33 inOverall Length: 9.00 inOverall Width: 5.16 inSeal Type: StandardDrain Connection Size: .4375-20 UNF-2b O-Ring Port Size -4Rating Notes: Continuous Ratings - The motor can operate continuously at these ratings. / Intermittent Operation - 10% per minute / Peak Operation - 1% per minuteMounting Type: 2-Bolt Flange - 3.25 in Pilot - SAE APort Orientation: Staggered PortsActual Mounting Flange: 2-Bolt Flange - Sae A - with 3-1/4 in Pilot DiameterActual Output Shaft: StraightActual Port Type: 1.0625-12 UN-2B SAE O-Ring Ports - Ports facing 180 degrees from each otherContinuous Flow Rate: 75 L/minIntermittent Pressure: 260 BarMaximum Continuous Oil Viscosity: 70 Saybold Universal SecondsMaximum RPM - Continuous: 246 RPMMaximum System Operating Temperature: -34°C to 82°CPort Configuration: 1.0625-12 UN-2B SAE O-Ring Ports - Ports facing 180 degrees from each other
- 【Part Number】104-1041-006 1041041006
- 【Application】For Eaton Char-Lynn 2000 Series
- 【Product Features】Maximum continuous pressure 2061 PSI.Torque 3540 in. lbs.Continuous maximum speed 375 RPM.Flow 34.0 gpm.
- 【Energy-saving design】1" diameter shaft with keyway.#12 SAE port.2 bolt SAE mounting flange.
- 【Warm Tips】Please check the specifications carefully to make sure you get the product you want. If you are not sure, you can send us your model number.
| Brand Name | Zachager |
|---|---|
| Item Weight | 11.05 Kilograms |
| Part Number | 104-1041-006 |
| Manufacturer | Zachager |
| Included Components | 1pcs 104-1041-006 Hydraulic Motorfor |
